Single Wall L Angle Board
  • Single Wall L Angle BoardSingle Wall L Angle Board
  • Single Wall L Angle BoardSingle Wall L Angle Board

Single Wall L Angle Board

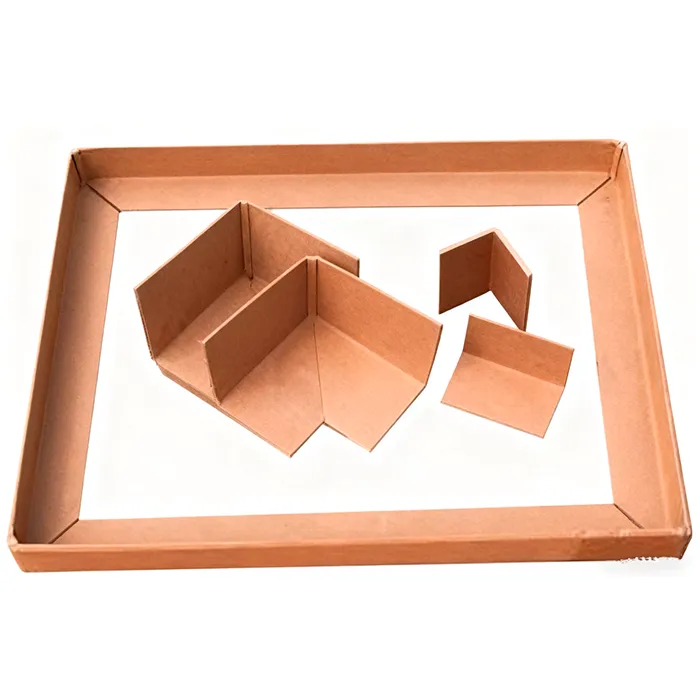

Single Wall L Angle Board, a single-layer pressed kraft paperboard formed into a right-angle L-shaped structure, is a high-quality and durable paper corner protector that Yilida can produce. It is lightweight and cost-effective, making it a suitable choice for pressure-bearing applications that do not require a strong product.

Yilida's Single Wall L Angle Board uses 100% recyclable recycled cardboard. No harmful substances are produced during the production and use process. It can be recycled directly after use. It is more in line with international environmental protection requirements than plastic corner protectors and reduces white pollution.


Product Specifications

Parameter Category

Specifications

Performance Specifications

Cross-sectional dimensions (width x thickness)

30mm x 30mm - 60mm x 60mm

Compression resistance ≥ 250 N/cm, deformation rate < 3.5%

Length

150mm - 1800mm (can be cut)

Length tolerance ± 2 mm

Material Structure

Single-wall corrugated paper (A/B/C flute) + 150g-200g kraft paper laminate

Tear resistance ≥ 8 N, interlayer peel strength ≥ 3 N/25 mm

Moisture Resistance

/

Moisture-resistant and waterproof, not easily softened

Packaging Compatibility

/

Fitness ≥ 95%, no warping


Product Features

The Single Wall L Angle Board features an L-shaped cross-section that adheres to strict standards. After packaging, it provides a wide contact surface for the goods, dissipating the pressure of the strapping and other external forces, preventing marks, crushing, or collisions that may leave marks or even damage. This single-layer paper corner protector, laminated and high-pressure formed, is lightweight and compact, yet still provides excellent resistance to compression and bending. However, if your intended product is heavy and bulky, we recommend choosing our thicker, heavy-duty corner protectors.

The outer layer of the paper corner protector can be coated with a waterproof and moisture-proof coating, making it suitable for humid environments or cold chain transportation. It can also be used with wax-impregnated waterproof cartons.


Why Choose Us?

Yilida is an experienced manufacturer with nearly 20 years of experience in the paper corner protector industry. We support high-volume production and printing, and can customize various cross-sectional shapes and specifications. For optimal packaging and storage, we recommend using our paper sliding pallets and wax-impregnated waterproof cartons. These are more convenient than using wooden pallets or wooden strips, are lightweight, and do not require fumigation. We work closely with customers in Europe, America, Australia, Japan, and Southeast Asia. Our products are ISO9001 certified, PONY tested, and FSC certified (100% recycled and 100% MIX). You are always welcome to contact us for inquiries.

Single Wall L Angle BoardSingle Wall L Angle Board



Hot Tags: Single Wall L Angle Board, Customized L Angle Board, Low Price L Angle Board
Send Inquiry
Contact Info
For inquiries about wax-impregnated waterproof cardboard box, angle boards, slip sheets or price list, please leave your email to us and we will be in touch within 24 hours.
